It is widely recognized for its exceptional soil-breaking performance and smooth, level finish after tillage. It can also chop up root stubble buried underground, creating ideal conditions for seeder operation and forming a high-quality seedbed for subsequent sowing.
Before starting operation, keep the rotary tiller in a raised position. Engage the power take-off shaft first and allow the blade shaft to reach its rated speed, then slowly lower the tiller to let the blades penetrate gradually into the soil to the required working depth. It is strictly forbidden to engage the power take-off or lower the tiller sharply when the blades are already in the soil, as this may cause blade bending or fracture and overburden the tractor.
During operation, drive at a steady low speed. This not only ensures superior tillage quality and fine soil fragmentation, but also reduces component wear. Always listen for abnormal noise or metal knocking from the rotary tiller, and monitor soil breaking effect and tillage depth. Stop the machine immediately if any abnormality occurs, and resume operation only after the fault is eliminated.
Do not till when turning at field edges. Raise the rotary tiller to lift the blades clear of the ground and reduce the tractor throttle to protect the blades. When raising the tiller, keep the universal joint inclination angle below 30°. An excessive angle will generate impact noise and lead to premature wear or damage.
When reversing, crossing field ridges or transferring to another plot, raise the rotary tiller to the highest position and disengage power to prevent component damage. For long-distance transportation, secure the tiller firmly with the locking device.
Perform routine maintenance after every use. Clean soil and weeds off the blades, check the tightness of all connecting parts, replenish lubricant at all lubrication points, and apply grease to the universal joint to minimize wear.
Bi-Directional Rotation
Easily handles tough terrain and creates a perfect seedbed in minutes, effectively saving time and labor while greatly boosting working efficiency.

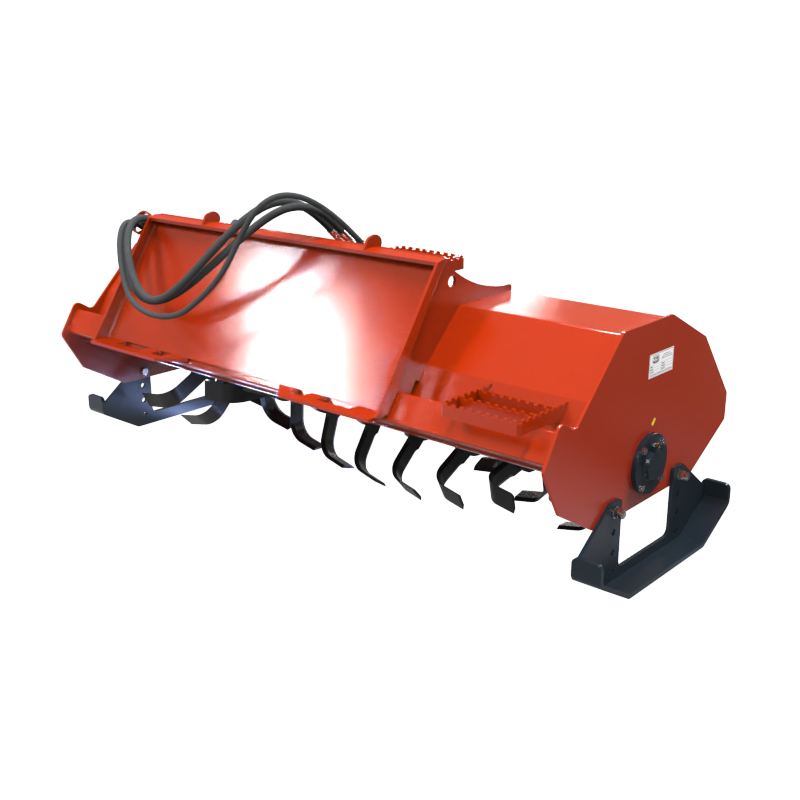

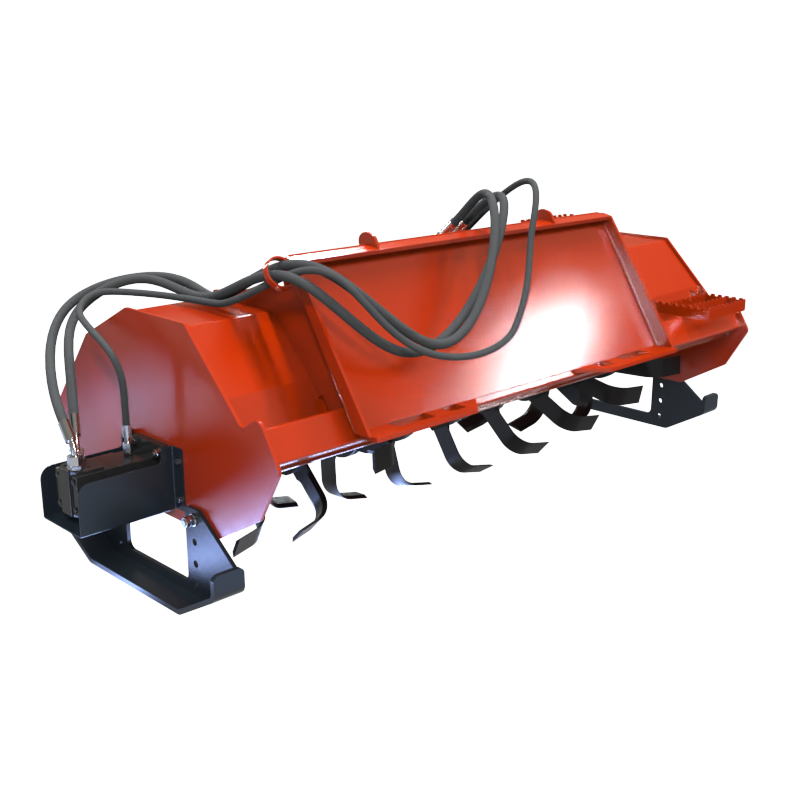

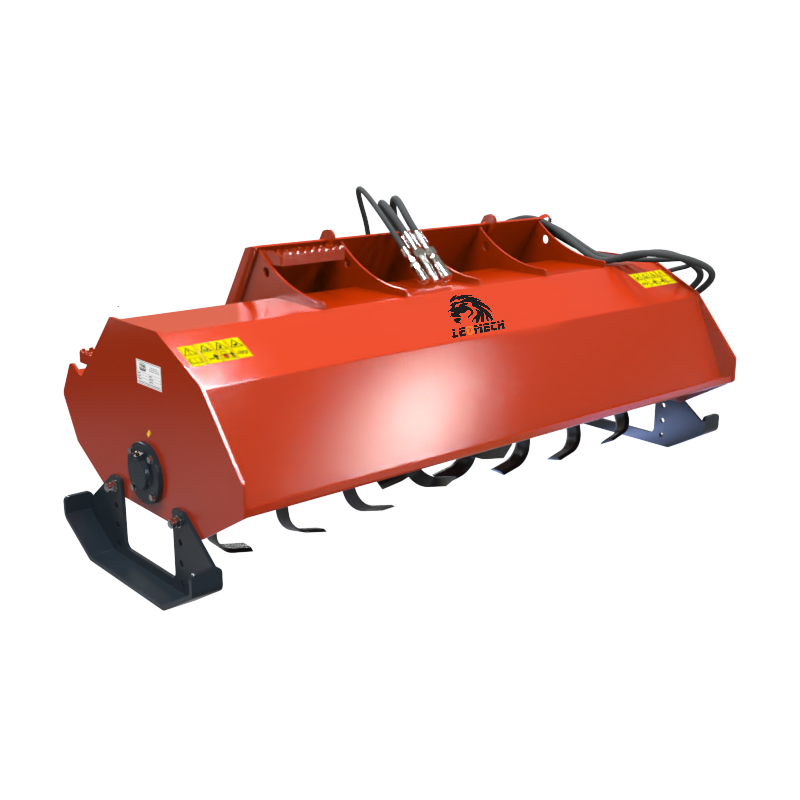

This heavy-duty bi-directional rotary tiller delivers a tilling depth of up to 6 inches.
It supports both forward and reverse rotation for flexible operation.
Direct Drive Motor
Provides stable and powerful output, lowers overall maintenance costs, and extends the service life of the attachment. It removes the need for high-wear parts including gearboxes, chains, sprockets and shear pins.
Double Edge Replaceable Tines
Compatible Machines
Skid Steer Loader, Compact Track Loader, Wheel Steer Loader, Mini Track Loader, and more.
Applications
Food plot planting, garden cultivation, landscape yard preparation, and soil stabilizer mixing.
